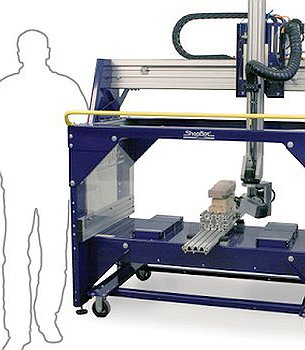

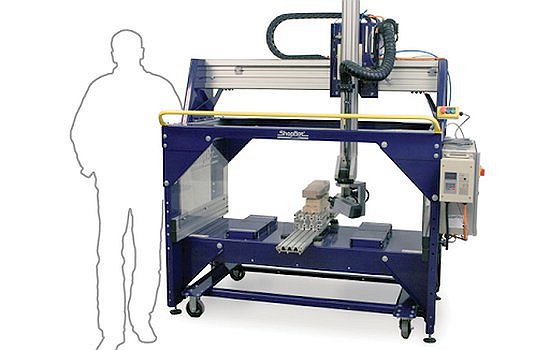

Tutorial Shopbot 5-axis FABLAB

(En Construcción)

1. Modificación postprocesador Fusion 360 para shopbot openSBP (http://www.fablab.uchile.cl/proyectos/463/shopbot-5-axis-fablab-modificacion-calibracion/)
   1. A,B limits
   2. Rewind tool
2. Montar CAM con largo de herramienta y gauge_length exactos
3. Crear NC program con 5-axis
   1. Dar largos de gauge exacto, safe distance (mm)
4. Checklist rutinas de calibración
   • Mount 90 degree calibration plate on PowerStick.
   • Put drill rod in spindle.
   • Manually move spindle over top of plate. Spindle should point straight down with B motor pointing in the positive Y-Direction.
   • Make sure input-1 will trigger by touching the alligator clip to the plate.
   • Attach alligator clip to spindle.
   • FP, C:\SbParts\Five Axis\Calibration Routines\1) 5AX_AB_Calibration.sbp
   • Remove drill rod and collet
   • FP, C:\SbParts\Five Axis\Calibration Routines\2) 5AX_Get_Gauge_Length.sbp
   • FP, C:\SbParts\Five Axis\Calibration Routines\3) 5AX_Find_Side_Plate.sbp
   • Reattach alligator clip to spindle (if removed)
   • FP, C:\SbParts\Five Axis\Calibration Routines\4) 5AX_Get_Gauge_Factor.sbp



5. Set origen al stock
6. Lanzar trabajo
